Description

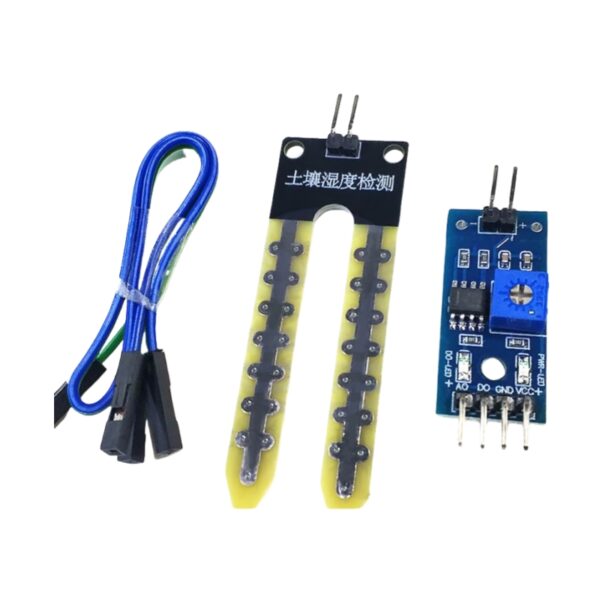

This soil moisture sensor module is designed for detecting the water content in soil, making it ideal for smart gardening, automatic irrigation systems, and DIY electronics projects. The module offers both digital and analog outputs, allowing for simple on/off control or precise moisture level readings. Sensitivity is adjustable via the onboard blue potentiometer.

Use it with microcontrollers like Arduino, ESP32, or Raspberry Pi to build a smart garden system that automatically waters your plants when the soil gets dry.

Features:

• Detection Function: Senses soil moisture level

• Output Behavior:
   – Digital Output (DO): High = dry soil, Low = moist soil
   – Analog Output (AO): Provides variable voltage for precise readings

• Adjustable Sensitivity: Via onboard blue potentiometer

• Operating Voltage: 3.3V – 5V DC

• Indicator LEDs:
   – Red: Power
   – Green: Digital output indicator

• Chipset: LM393 Comparator for stable performance

• Mounting: Fixed bolt holes for easy installation

• Board Size: 3cm × 1.6cm

Pinout:

• VCC: 3.3V–5V

• GND: Ground

• DO: Digital Output (0 or 1)

• AO: Analog Output

Applications:

• Smart plant watering systems

• Soil humidity detection

• Agricultural automation

• Smart robots and environmental sensing
