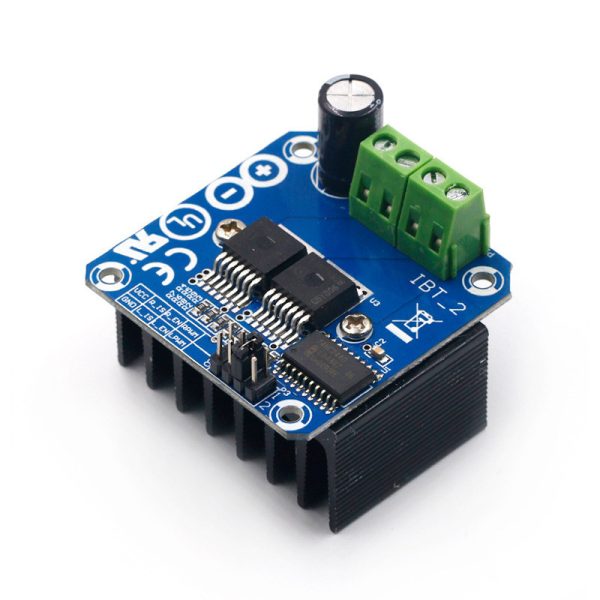

A heavy-duty H-bridge motor driver based on the BTS7960 chip, designed to control high-current DC motors with excellent efficiency and thermal performance. Ideal for smart cars, robotics, and automation projects that require powerful and reliable motor control.
Driver IC: BTS7960
Peak Current: 43A
Motor Voltage: 5V – 27V DC
Logic Voltage: 5V
Control Type: PWM + Direction (H-Bridge)

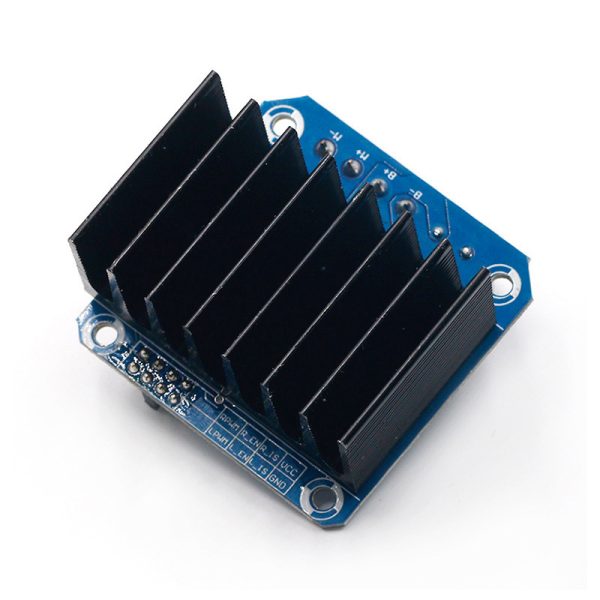

Built-in large heat sink for cooling
Overcurrent, overtemperature, and undervoltage protection
Logic Side:
RPWM – Right PWM input
LPWM – Left PWM input
R_EN – Right enable
L_EN – Left enable
VCC (5V)
GND
Motor & Power Side:
B+ / B- – Motor power supply
M+ / M- – Motor output
Controls large DC motors forward and reverse
High current capacity with strong heat dissipation
Smooth speed control using PWM
Multiple protection features for safe operation
Compatible with Arduino, ESP8266, ESP32, and PLC
